Proteome Profiler Mouse Cytokine Array Kit, Panel A

R&D Systems | Catalog # ARY006

Contains 4 membranes - each spotted in duplicate with 40 different cytokine antibodies
R&D Systems
100% Guarantee

Key Product Details

Species

Mouse

Product Summary for Proteome Profiler Mouse Cytokine Array Kit, Panel A

Kit Summary

A membrane-based antibody array for the parallel determination of the relative levels of selected mouse cytokines and chemokines. Validated for analyte detection in cell culture supernates, cell lysates, tissue lysates, serum, and plasma.

Troubleshooting Guide

Key Benefits

  • Detects 40 mouse cytokines, chemokines, and acute phase proteins simultaneously
  • Requires no specialized equipment
  • Compatible with LI-COR* and chemiluminescence detection
*If using a LI-COR, additional reagents and protocol modifications are required.  Refer to protocol.

Principle of the Assay

The Proteome Profiler Mouse Cytokine Array Kit, Panel A is a membrane-based sandwich immunoassay. Samples are mixed with a cocktail of biotinylated detection antibodies (Step 1) and then incubated with the array membrane which is spotted in duplicate with capture antibodies to specific target proteins (Step 2). Captured proteins are visualized using chemiluminescent detection reagents (Step 3). The signal produced is proportional to the amount of analyte bound.

Why Use an Antibody Array to Detect Multiple Cytokines?

Determining the expression of multiple cytokines in a single sample can be expensive, time consuming and can require specialized equipment. Performing multiple immunoprecipitations and Western blots requires time, labor, and reagents. The use of a multiplex antibody array to detect multiple cytokines in a single sample can be cost-effective and also save time and sample.





Kit Contents
  • Rectangular 4-Well Multi-dish
  • 4 Mouse Cytokine Array, Panel A nitrocellulose membranes spotted with 40 different antibodies to mouse cytokines, chemokines, and acute phase proteins
  • Array Buffer 4
  • Array Buffer 6
  • Chemi Reagent 1
  • Chemi Reagent 2
  • Detection Antibody Cocktail, Mouse Cytokine Array, Panel A
  • Streptavidin-HRP
  • Transparency Overlay Template
  • Wash Buffer Concentrate (25X)

For a complete list of the kit contents and necessary materials, please see the Materials Provided/Other Supplies Required sections of the product datasheet.

Stability and Storage

Store the unopened kit at 2 °C to 8 °C. Do not use past kit expiration date.


Simultaneously detect the levels of these cytokines, chemokines, and acute phase proteins in a single sample.
CXCL13/BLC/BCA-1 IL-5 M-CSF
C5a IL-6 CCL2/JE/MCP-1
G-CSF IL-7 CCL12/MCP-5
GM-CSF IL-10 CXCL9/MIG
CCL1/I-309 IL-12 p70 CCL3/MIP-1 alpha
CCL11/Eotaxin IL-13 CCL4/MIP-1 beta
ICAM-1 IL-16 CXCL2/MIP-2
IFN-gamma IL-17 CCL5/RANTES
IL-1 alpha/IL-1F1 IL-23 CXCL12/SDF-1
IL-1 beta/IL-1F2 IL-27 CCL17/TARC
IL-1ra/IL-1F3 CXCL10/IP-10 TIMP-1
IL-2 CXCL11/I-TAC TNF-alpha
IL-3 CXCL1/KC TREM-1
IL-4



Assays for Analytes represented in the Mouse Cytokine Array Kit, Panel A

Analyte Quantikine® ELISA Kits DuoSet® ELISA Development Systems
CXCL13/BLC/BCA-1 MCX130 DY470
C5a   DY2150
G-CSF MCS00 DY414
GM-CSF MGM00 DY415
CCL1/I-309/TCA-3   DY845
CCL11/Eotaxin MME00 DY420
ICAM-1 MIC100 DY796
IFN-gamma MIF00 DY485
IL-1 alpha MLA00 DY400
IL-1 beta MLB00B DY401
IL-1ra MRA00 DY480
IL-2 M2000 DY402
IL-3 M3000 DY403
IL-4 M4000B DY404
IL-5 M5000 DY405
IL-6 M6000B DY406
IL-7 M7000 DY407
IL-10 M1000b DY417
IL-12 p70 M1270 DY419
IL-13 M1300CB DY413
IL-16
IL-17 M1700 DY421
IL-23 M2300 DY1887
IL-27 M2728
CXCL10/IP-10/CRG-2 MCX100 DY466
CXCL11/I-TAC   DY572
CXCL1/KC MKC00B DY453
M-CSF MMC00 DY416
CCL2/MCP-1/JE MJE00 DY479
CCL12/MCP-5 MCC120 DY428
CXCL9/MIG MCX900 DY492
CCL3/MIP-1 alpha MMA00 DY450
CCL4/MIP-1 beta MMB00 DY451
CXCL2/MIP-2 MM200 DY452
CCL5/RANTES MMR00 DY478
CXCL12/SDF-1 MCX120 DY460
CCL17/TARC   DY529
TIMP-1 MTM100 DY980
TNF-alpha MTA00 DY410
TREM-1 MTRM10 DY1187

Scientific Data Images for Proteome Profiler Mouse Cytokine Array Kit, Panel A

The Mouse Cytokine Array, Panel A utilizes capture antibodies spotted onto a nitrocellulose membrane to allow high-throughput multi-analyte profiling of 40 cytokines, chemokines, and more in a single sample.

The Mouse Cytokine Array, Panel A utilizes capture antibodies spotted onto a nitrocellulose membrane to allow high-throughput multi-analyte profiling of 40 cytokines, chemokines, and more in a single sample.

Mouse splenocytes treated with 100 ng/mL LPS for 20 hours were mixed with a cocktail of biotinylated detection antibodies, and then incubated with the Mouse Cytokine Array. The array was then incubated with streptavidin-horseradish peroxidase followed by chemiluminescent detection. After detection, the array data were quantitated to generate a protein profile (histogram). The table shows the analytes detected and their location on the membrane.

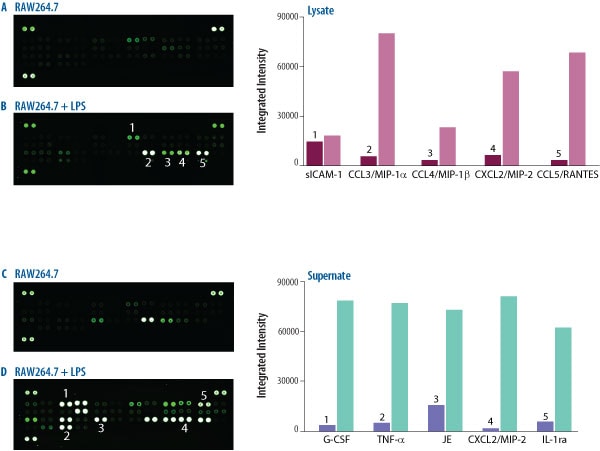

The Mouse Cytokine Array detects multiple analytes in cell culture lysates and supernates.

The Mouse Cytokine Array detects multiple analytes in cell culture lysates and supernates.

(A. and B.) Lysates of RAW264.7 mouse monocyte/macrophage cell line untreated or treated with 100 ng/mL LPS for 24 hours. 100 µg of lysate was used for each array shown. (C. and D.) Supernates of RAW264.7 mouse monocyte/macrophage cell line untreated or treated with 100 ng/mL LPS for 24 hours. 100 µL of supernate was used for each array shown. Array images were collected and analyzed using the LI-COR Odyssey Infrared Imaging System.

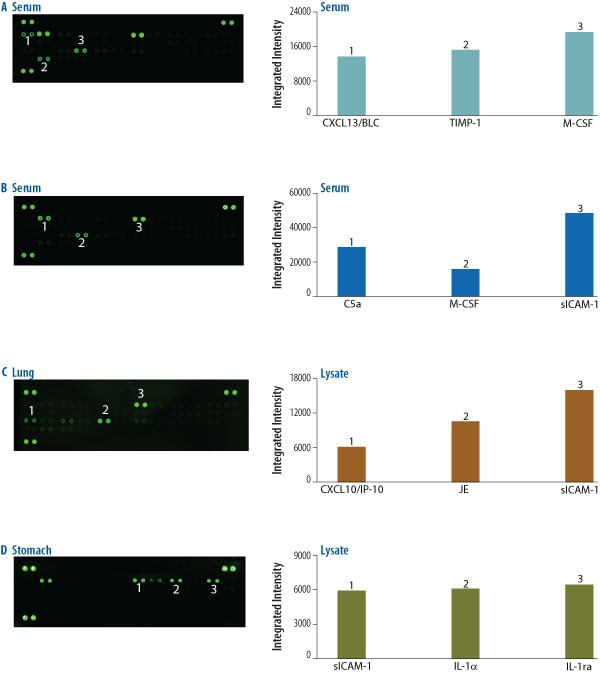

The Mouse Cytokine Array detects multiple analytes in mouse serum and tissue lysates.

The Mouse Cytokine Array detects multiple analytes in mouse serum and tissue lysates.

(A and B.) Samples of mouse serum from two different vendors. 200 µL of serum was used for each array shown. (C. and D.) Lysates of mouse lung tissue and mouse stomach tissue. 200 µg of lysate was used for each array shown. Array images were collected and analyzed using the LI-COR Odyssey Infrared Imaging System.

Formulation, Preparation, and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Multiplex Cytokine Assay Kits

Cytokine Multiplex Assay Kits allow researchers to simultaneously detect the levels of multiple cytokines in a single sample. This is particularly useful for identifying the wide array of changes that can be associated with different pathological conditions. For multianalyte cytokine detection, we offer membrane-based Proteome Profiler Cytokine Antibody Arrays, bead-based Luminex® Assays, and Simple Plex automated ELISAs. For our antibody arrays, we offer human, mouse, or rat XL Cytokine Antibody Arrays that detect 105, 111, or 79 analytes respectively, including interleukins, interferons, chemokines, and members of the tumor necrosis factor superfamily. Our standard Luminex Assays for human, mouse, rat, porcine, and non-human primate (NHP) may also be used to detect many of these same analytes. With a menu of more than 490 analytes to select from, multiplexing with our Luminex assays provides the ability to simultaneously assess up to 50 analytes using magnetic microparticles. Experience consistent biomarker detection and ultra-sensitive results in less than 90 minutes with Ella, our automated benchtop ELISA. Simple Plex offers an extensive selection of over 250 fully validated assays essential to complete your cytokine research. Whether you want a stocked panel, ready to ship in just 2 days, a custom panel with up to 8 assays specific to your research, or a single assay cartridge for up to 72 samples ran simultaneously, Simple Plex has the solution to your research needs.

Additional Multiplex Cytokine Assay Kits Products

Product Documents for Proteome Profiler Mouse Cytokine Array Kit, Panel A

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Proteome Profiler Mouse Cytokine Array Kit, Panel A

For research use only

Citations for Proteome Profiler Mouse Cytokine Array Kit, Panel A

Customer Reviews for Proteome Profiler Mouse Cytokine Array Kit, Panel A (37)

4.8 out of 5
37 Customer Ratings
5 Stars
81%
4 Stars
16%
3 Stars
3%
2 Stars
0%
1 Stars
0%

Have you used Proteome Profiler Mouse Cytokine Array Kit, Panel A?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 5 of 37 reviews Showing All
Filter By:
Clear Filters X
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Andres Ocampo
    Verified Customer | Posted 12/28/2024

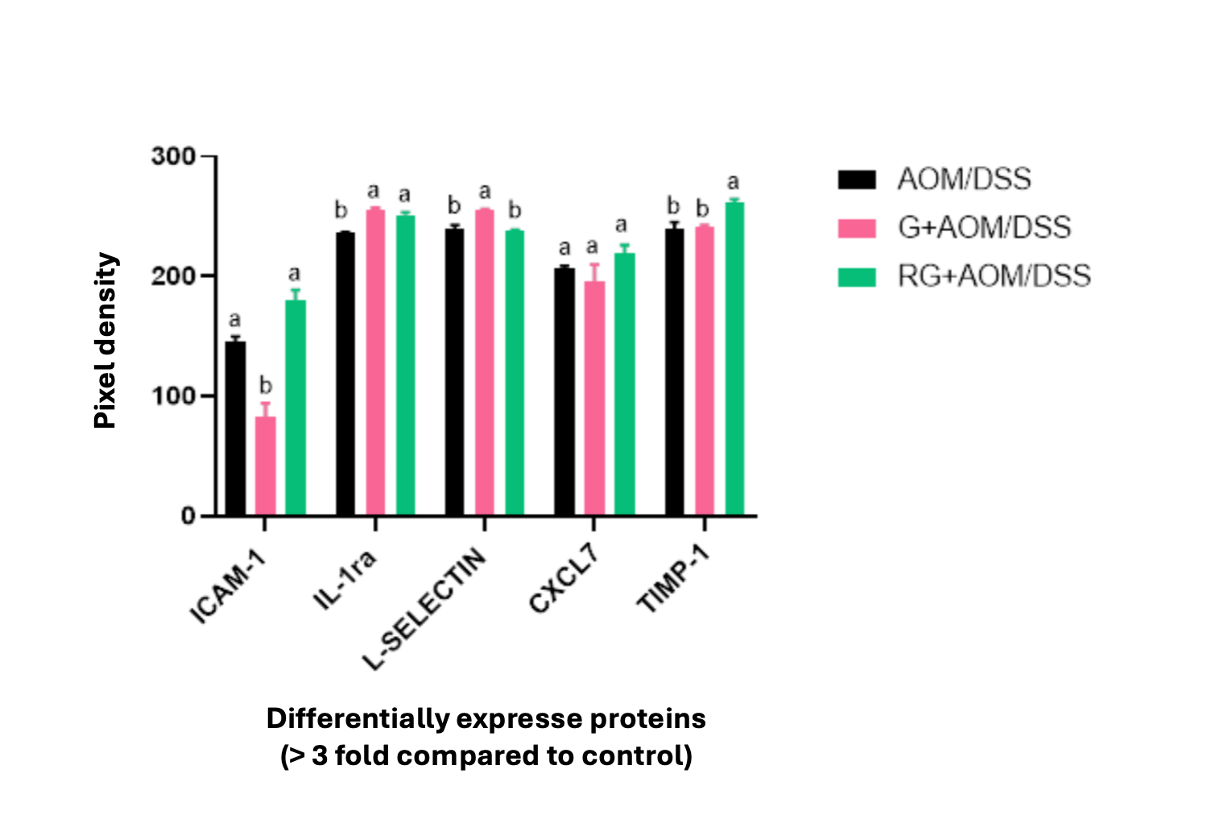

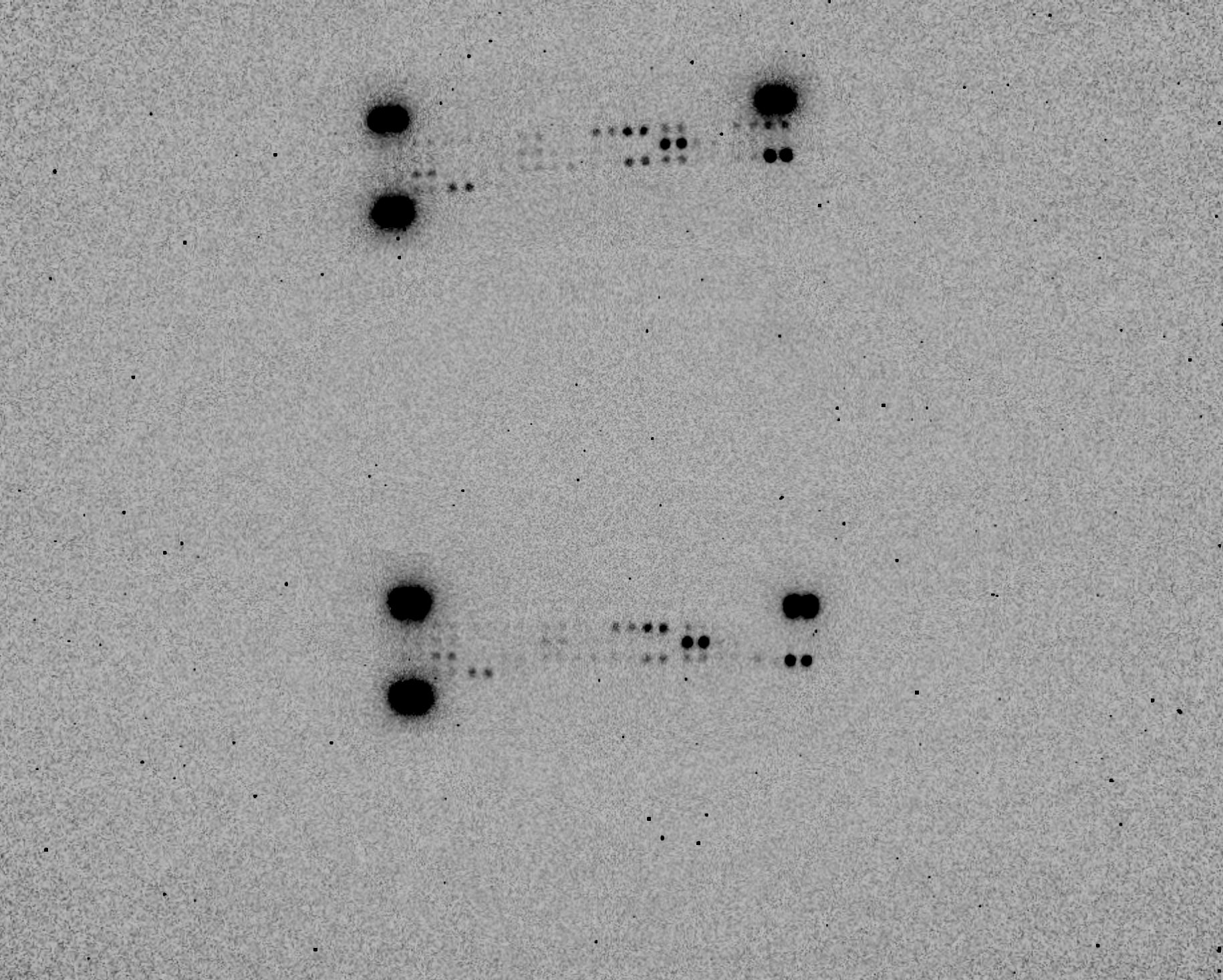

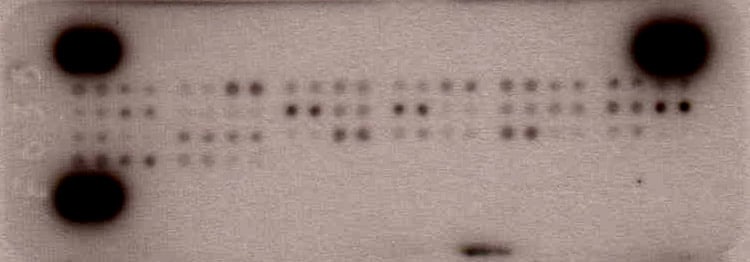

    Mice colonic tissues were subjected to protein extraction, and lysates were used to test the expression of different proteins in these tissues. In the picture, only those proteins exhibiting a differential expression >3.0 fold (compared to untreated animals) were presented. Animals were experimentally subjected to several treatments to induce colon cancer (AOM/DSS group) chemically, and two different groups consuming high-fiber samples (G+AOM/DSS and RG+AOM/DSS) were also tested. Results were very repeatable, considering the low SD values between the samples (different samples for each group), and the procedure was very easy to follow. We highly recommend using this protein array in mice colonic tissues.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Mary-Kate Hayward
    Verified Customer | Posted 04/12/2024
    Performed well for mammary tumor lysates
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Khuynh Nguyen
    Verified Customer | Posted 08/15/2023
    The kit works very well
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 02/25/2023
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Andres Ocampo
    Verified Customer | Posted 10/11/2022

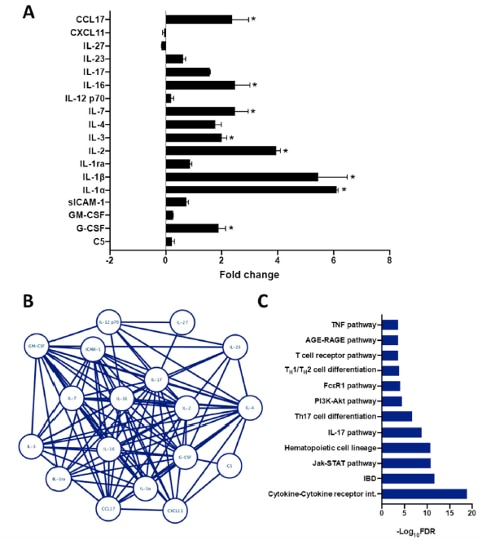

    Mouse Cytokine Antibody Array was used in serum from Prolactin Receptor wild type baby mice after the mother's high-fat diet feeding for 21 days of lactation, and results were compared with Control Diet (CD). A low-level pro-inflammatory mechanism could be confirmed due to the modulation of inflammation-associated cytokines.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 03/01/2022
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Martin Torres
    Verified Customer | Posted 10/01/2021

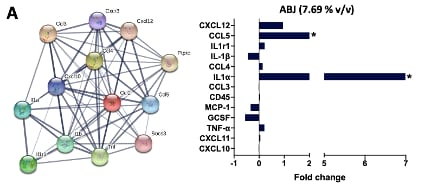

    The array was used to test the anti-inflammatory potential from Octopus vulgaris ink extracts on LPS-stimulated RAW 264.7 cells. Results obtained were in agreement with other biochemical and in vitro test. We have used this kit in several LPS-challenged murine macrophages. Fig. A shows the expression level of each cytokine against the control (LPS only-treated macrophages); B shows a bioinformatic arrangement of the modulated cytokines, and C shows a predictive analysis from the results obtained in this kit.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Martin Torres
    Verified Customer | Posted 09/23/2021
    Pro and anti-inflammatory cytokines were evaluated in RAW264.7 macrophages treated with LPS (1 microgram/mL) and a South American berry (ABJ). Results obtained showed the modulation of several cytokines indicated in this kit. We have conducted several evaluations of these cytokines using this kit and results never disappoint. What we like the most is that this assay allows the evaluation of several cytokines that would take a lot of time by conventional techniques such as ELISA or Western Blot.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 09/23/2021
    20 ul serum was used to perform the experiment.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 08/31/2021
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anil Singh
    Verified Customer | Posted 08/25/2021
    mouse serum 200ul used for cancer model
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Gaurav Kumar
    Verified Customer | Posted 08/17/2021
    Used serum to see the role of gene in pavreatic cancer
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Allison Scarpitti
    Verified Customer | Posted 05/10/2021
    Phenomenal results, consistent performance and excellent translation to use with Streptavidin-800. On step 11, I swapped the Streptavidin-HRP for a 1:2,000 ratio of Streptavidin-800. Then followed with the wash steps and the result is as posted.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 03/06/2021
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: jinxiu PAN
    Verified Customer | Posted 02/24/2020
    150UL SERUM WAS USED
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 02/12/2020
    mouse tissues
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 02/12/2020
    serum from knock-out mice
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 02/08/2020
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 12/10/2019
    Followed protocol exactly, 10 min exposure on film wasn't great, boosted to 20 min exposure, still not good. 5 min on digital imager and positive control spots were saturated! Much more sensitive!
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 06/06/2019
    T cells isolated and stimulated with various agonists.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 04/05/2019
    good!
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Ivan Luzardo
    Verified Customer | Posted 03/13/2019

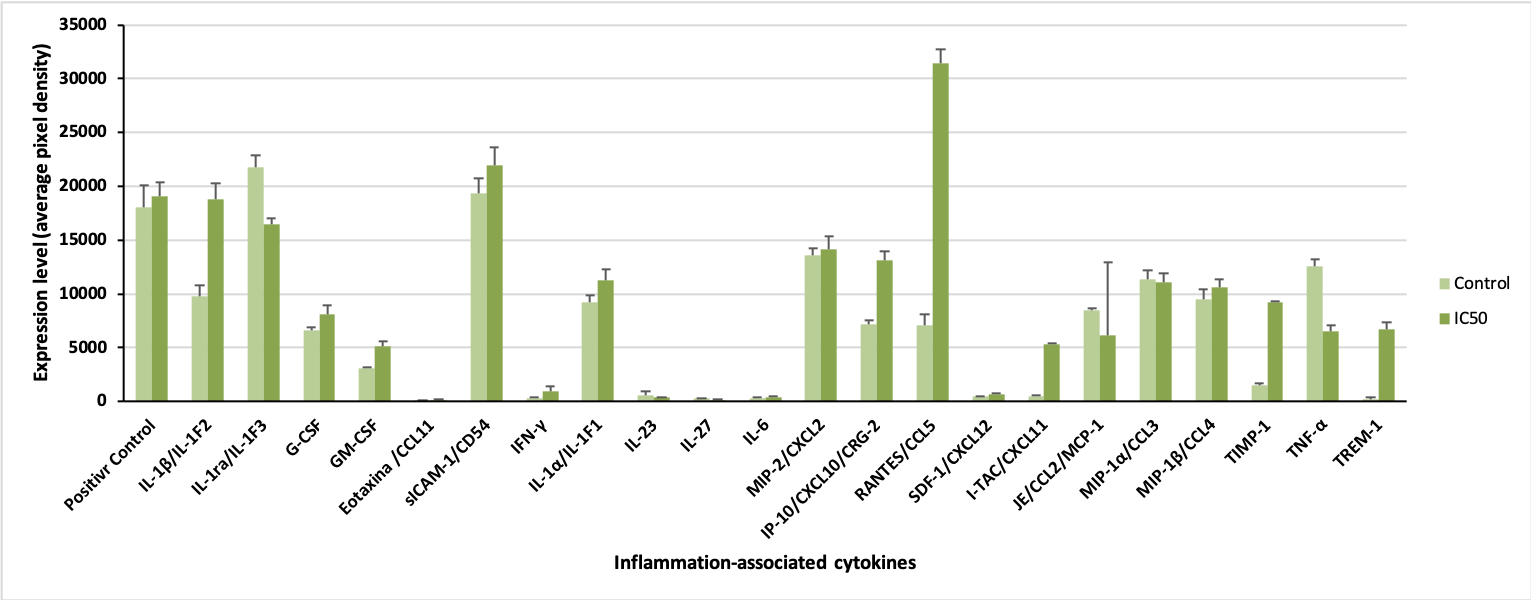

    This array was used to measure the modulation of inflammation-associated cytokines in LPS-stimulated RAW264.7 macrophages treated with several doses of the non-digestible fraction from a corn/bean snack.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Brian Englar
    Verified Customer | Posted 02/07/2019
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 12/26/2018
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Ivan Luzardo
    Verified Customer | Posted 12/11/2018
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 11/11/2018
    High quality results with simple and straightforward protocol. No optimization needed.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 07/19/2018
    instructions easy to follow. I needed a little longer than the 10 minute exposure due to low protein concentrations from my very small tissues.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 04/26/2018
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Adam Guess
    Verified Customer | Posted 10/20/2017
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 09/27/2017
    Very sensitive cytokine assay!
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 07/14/2017
    performed on cell conditoned media from mouse fibroblasts
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Michelle Chen
    Verified Customer | Posted 05/10/2017
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Camila Idelí Morales Fénero
    Verified Customer | Posted 03/15/2017

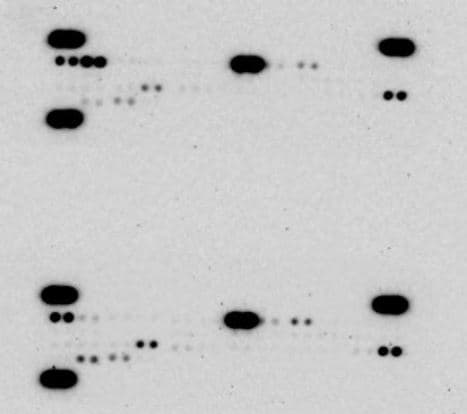

    Assay tested in 200 ug of protein from pool of intestines of 10 dpf zebrafish larvae.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 02/27/2017
    Mouse BALF samples from pooled control and treatment groups in 2 separate arrays to determine the altered cytokine response.
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 01/27/2017

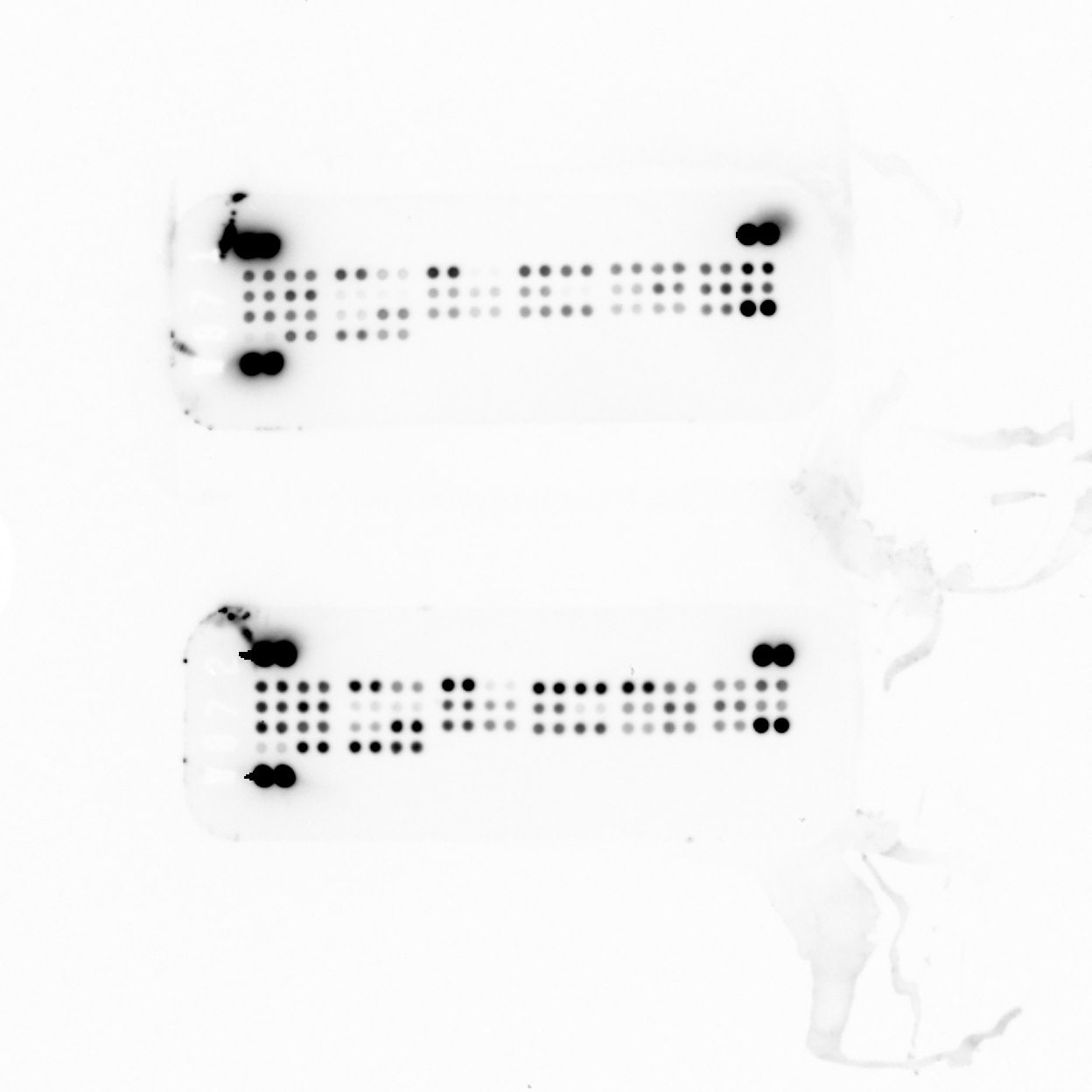

    Bronchoalveolar lavage fluid from C57BL/6J mouse
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Anonymous
    Verified Customer | Posted 10/06/2016
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006
  • Proteome Profiler Mouse Cytokine Array Kit, Panel A
    Name: Kihong Lim
    Verified Customer | Posted 09/29/2016
    Proteome Profiler Mouse Cytokine Array Kit, Panel A ARY006

There are no reviews that match your criteria.

Showing  1 - 5 of 37 reviews Showing All

FAQs for Proteome Profiler Mouse Cytokine Array Kit, Panel A

Showing  1 - 1 of 1 FAQ Showing All

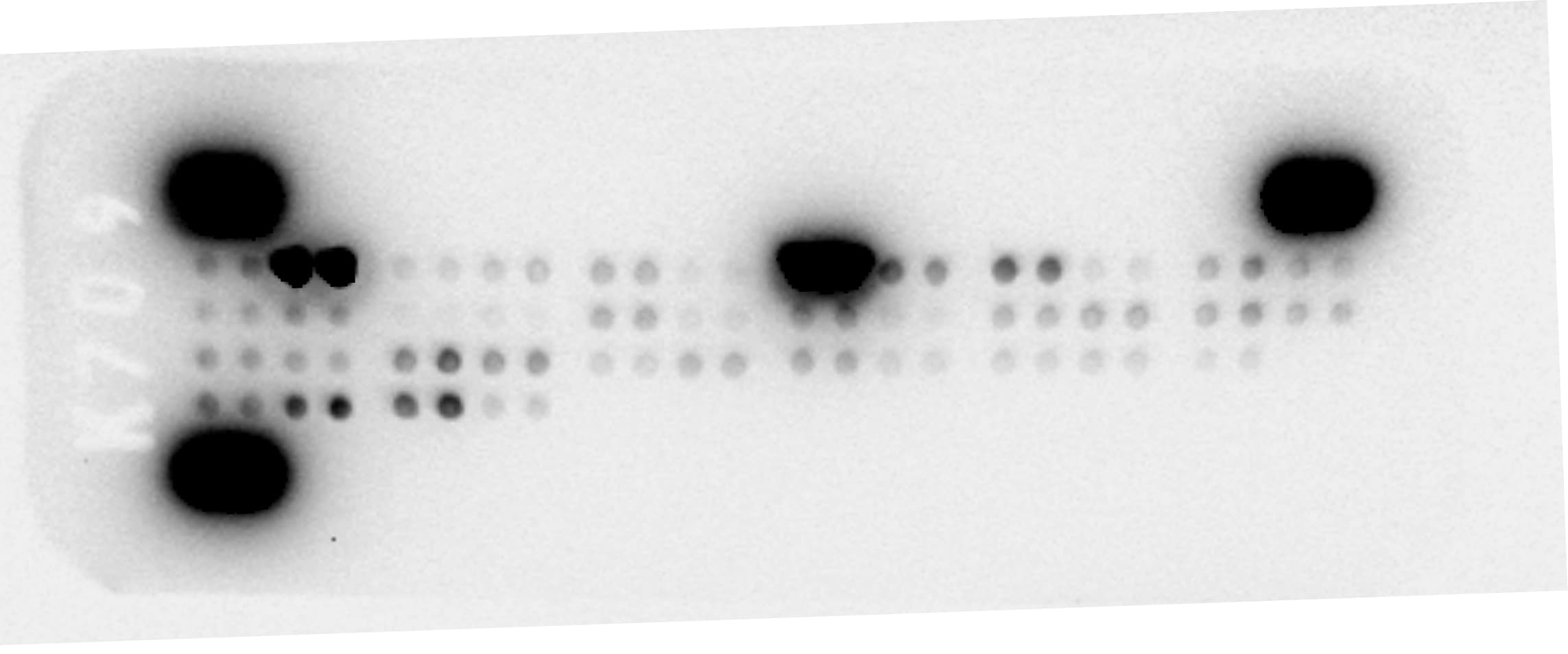

    • Q: Will the Array identification number stamped on the Array membrane interfere with detection if it is not cut-off before the membrane is blocked?
      A: The dye used for printing the Array identification number on the membranes will fluoresce and interfere with the LI-COR detection. It is critical that the number is cut off before beginning the experiment.
Showing  1 - 1 of 1 FAQ Showing All
View all FAQs for Proteome Profiler Antibody Arrays
